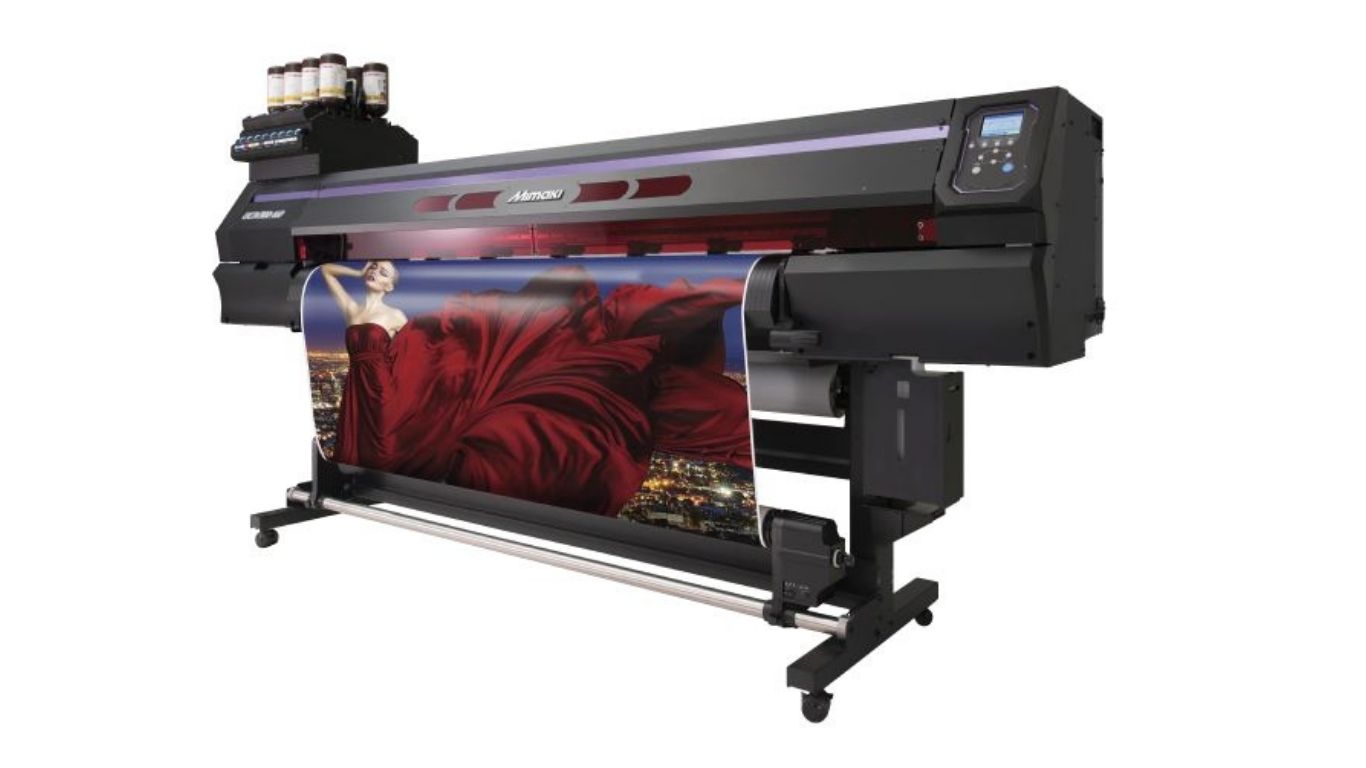

$499/Month Mimaki UCJV300-160 UV-curable Inkjet Wide Format Production Printer with the 4-layer/5-layer print function in addition to UV LED Print and Cut


- Printable up to 1610 mm width.
- Applicable to large format sign, long-sized sticker, vehicle wrapping films, too.
- Reliable functions for Print & Cut to wide sized print production.

Leading the Future of Sign Graphics through UV Innovation

Mimaki UCJV300-160 is a versatile inkjet printer having a combined function of both printing and cutting mounted with UV-curable ink.

Mimaki UCJV300-160 is a high spec model equipped with the 4-layer/5-layer print function in addition to UV LED print and Print&Cut. This new model is enough to cover wider ranges from a quick job with short delivery time to an avant-garde signboard.

  1. The future of Sign Graphics created by the 4 layers print
  2. On-demand print utilizing UV characteristics
    - Quick access to next processing and sign applying due to UV ink property
    - Wide range of applications
  3. Newly developed environmentally friendly UV ink, [LUS-170] and [LUS-175]
    - Clear ink added!
  4. Flexible UV Ink [LUS-200]
  5. Productive cutting functions. A new function, [ID Cut] will highly improve the work efficiency
  6. Upgraded RIP software, [RasterLink6Plus]

The UCJV300-160 is the worlds only 64" wide LED UV Curable print/cut solution. Being UV Cured, LUS-170 inks give a wider range of media compatibility than any other ink technology. White inks extend this range even further, allowing printing on clear, metallic and even solid colored media. With contour cutting built in, the UCJV300 is the machine that suits nearly every graphic application...

- Highest media versatility with unparalleled scratch resistance
- Print and cut capability in one unit
- White Ink and 5-Layer modes allows for second-surface printing and double-sided clear decals
- Clear Ink allows unique raised and "spot-gloss" effects
- Instantly-cured prints for shorter turnarounds and additional cost savings
- Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
- 3M™ MCS™ Warranty on LUS-200 inks and Avery Dennison™ ICS™ Performance Guarantee on LUS-170/LUS-200 inks
- RIP software RasterLink6 Plus with ID cut function included


- Printhead: Two industrial-grade, in-line on-demand piezo heads
- Print resolutions: 300dpi, 600dpi, 900dpi, 1200dpi
- Cut Speed: 16.5″ sec (42.0 cm/sec)
- Maximum Cut pressure (Metric grams): 450g
- Maximum print area: 63.4"
- Maximum media width: 63.8"
- Maximum media thickness: Up to 1mm)
- Maximum media weight: Up to 88.2 lbs
- Ink type: U.S. & Canada - LUS-170 and LUS-200 (C,M,Y,K,Wh, Cl)
- Ink package size: 1L bottles
- Interface: Ethernet cable or USB2.0 cable
- Power supply: Single phase AC100~120V/200~240V (+/- 10%), 50-60Hz (+/- 1Hz)
- Operational enviroment: Temperature 20-30 degrees C with Humidity at 35-65% RH (non-condensing)
- Printer size: 103.5″ x 30.6″ x 58.1″
- Assembled printer weight: 414.5 lbs
