$79.95/Month New GCC J5-101LX 40 Inch (102cm) Jaguar V Vinyl Cutter With Media Take up For Efficient PPF Cutting (Media Basket Included)


Lease for Only $79.95/month

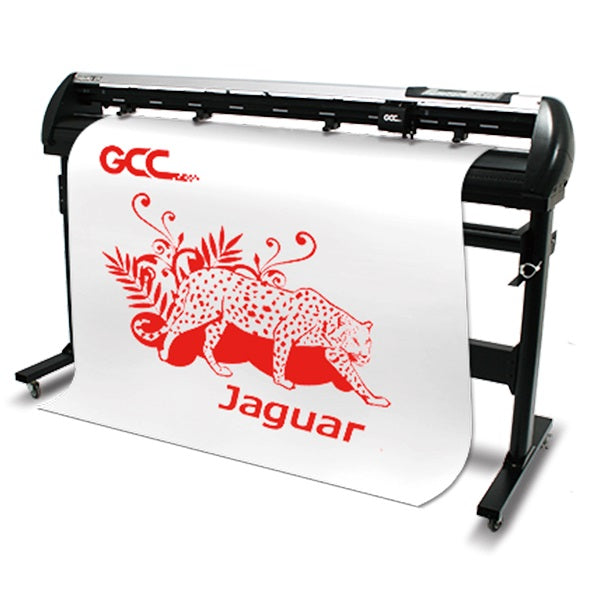

New GCC J5-101LX 40 Inch (102cm) Jaguar V Vinyl Cutter With Media Take up For Efficient PPF Cutting (Media Basket Included)

With intuitive features to meet the demands of today's professionals, the Jaguar V J5-101LX  represents the apex of vinyl cutting plotter technology.

Items Included

GCC Jaguar V J5-101LX
Media Basket

To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.

Media Basket


Operational Method - Roller-Type
Max. Cutting Width - 1016mm (40 in.)
Max. Media Loading Width - 1270mm (50 in.)
Min. Media Loading Width - 50 mm (1.97 in.)
Number of Pinch Rollers - 4
Acceptable Material Thickness - 0.8 mm (0.03 in.)
Drive Motor - DC Servo Control
Max. Cutting Force - 600 g
Max. Cutting Speed - 1530 mm/sec (60 ips) (at 45° direction)
Acceleration - 4.2 G (gravity)
Offset - 0~1.0 mm (with an increase of 0.025mm)
Memory Buffer - 32 MB /16 MB (when using AAS)
Interfaces - USB 2.0 (Full Speed), Serial (RS-232) and Ethernet
Type of Command - HP-GL, HP-GL/2
Mechanical Resolution - 0.006 mm
Software Resolution - 0.025 mm
Distance Accuracy - ±0.254 mm or ±0.1% of move, whichever is greater
Repeatability - ±0.1mm
Automatic-Aligning System - Yes, including Segmental Positioning and Auto Rotation functions
Auto Rotation - Yes
Section Cutting - Yes
Curve & Arc Smoothing - Yes
Configurable Origin - Yes
Test Cut Capability - Yes
Tangential Mode - Yes
Over Cut - Yes
Repeat - Yes
Copy - Yes
Control Panel - LCD (20 digits x 2 lines), 14 Keys, 1 Power LED
Diameter of Blade - 2.5 mm
Power Supply - 100 ~ 240VAC 50/60Hz (auto switching)
Power Consumption - Max. 250 W
Dimension (HxWxD) mm - 1096 * 1450 * 651
Dimension (HxWxD) in - 43.1 * 57 * 25.6
Net Weight - 41.5 kg/ 91.4 lb
Media Basket - Included
Stand - Standard


Enhanced AAS II Contour Cutting System

The Jaguar V series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images. Functions include:
 1st-mark auto-detection  4-point positioning
 Segmental positioning    Multiple copies

Media Take-up System

GCC develops the Jaguar V PPF machine equipped with the professional Media Take-up System for roll-to-roll cutting that makes paint protection film (PPF) cutting much more efficiently and cost lower than manual cutting.

Section Cutting

Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Jaguar V series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.

Auto Rotation

New registration marks defined to detect material feeding direction. Jaguar V detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.

Segmental Positioning

Jaguar V series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.

Triple Port Connectivity

Jaguar V series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Jaguar V. Ethernet connection enables multiple Jaguar V to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.

Efficient Throughput

At up to 60 inches per second of cutting speed, Jaguar V series cutting throughput simply outperforms the competition.

Guaranteed 10m Tracking Ability

The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.

Innovative Tangential Mode

The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.

Media Support System

The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

User-Friendly Control Panel

The easy-to-use and multi-language control panel can remarkably simplify complex tasks. It provides various functional settings to meet users' needs.

Selective Pinch Roller Positioning

Each pinch roller can be operated respectively to selective position wherever is proper to optimize its utility.

Facilitate Efficient Workflow of Car Wrapping

The dedicated GCC Jaguar V (PPF) is the most cost-effective and high-performance vinyl cutter for streamlined vehicle wrap workflow. With the support of third-party cutting software containing the window tint and PPF pattern library, GCC Jaguar V (PPF) can accurately cut the vehicle patterns you require, making the wrapping process quicker and easier.

GCC One-Click Windows Driver

GCC cutting plotters include an One-click Windows driver that allows sign makers to edit images in CorelDRAW or Adobe Illustrator and output directly to GCC cutting plotters.
