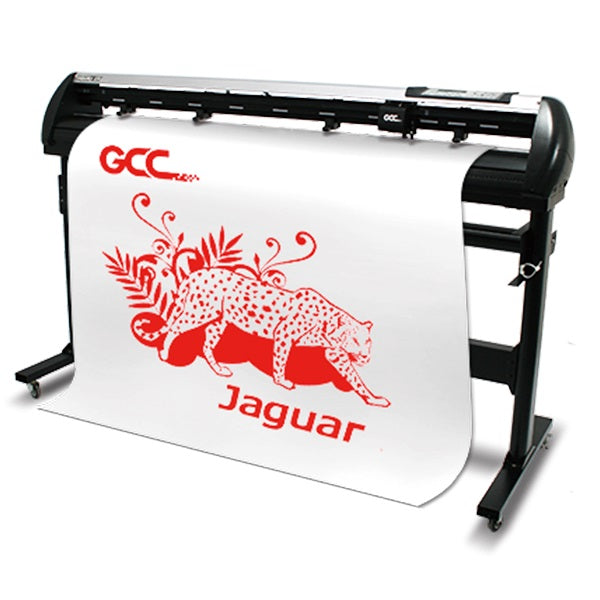

New GCC J5-132LX 52" Inch (132cm) Jaguar V PPF Vinyl Cutter Including Media Basket
With intuitive features to meet the demands of today's professionals, the Jaguar V J5-132LX represents the apex of vinyl cutting plotter technology.
GCC J5-132LXMedia Basket
To keep your vinyl off the floor and away from dust or contaminants. Your production will be a clean and efficient operation.
Operational Method - Roller-TypeMax. Cutting Width - 1320mm (52 in.)Max. Media Loading Width - 1594mm (62.7 in.)Min. Media Loading Width - 50 mm (1.97 in.)Number of Pinch Rollers - 4Acceptable Material Thickness - 0.8 mm (0.03 in.)Drive Motor - DC Servo ControlMax. Cutting Force - 600 gMax. Cutting Speed - 1530 mm/sec (60 ips) (at 45° direction)Acceleration - 4.2 G (gravity)Offset - 0~1.0 mm (with an increase of 0.025mm)Memory Buffer - 32 MB /16 MB (when using AAS)Interfaces - USB 2.0 (Full Speed), Serial (RS-232) and EthernetType of Command - HP-GL, HP-GL/2Mechanical Resolution - 0.006 mmSoftware Resolution - 0.025 mmDistance Accuracy - ±0.254 mm or ±0.1% of move, whichever is greaterRepeatability - ±0.1mmAutomatic-Aligning System - Yes, including Segmental Positioning and Auto Rotation functionsAuto Rotation - YesSection Cutting - YesCurve & Arc Smoothing - YesConfigurable Origin - YesTest Cut Capability - YesTangential Mode - YesOver Cut - YesRepeat - YesCopy - YesControl Panel - LCD (20 digits x 2 lines), 14 Keys, 1 Power LEDDiameter of Blade - 2.5 mmPower Supply - 100 ~ 240VAC 50/60Hz (auto switching)Power Consumption - Max. 250 WDimension (HxWxD) mm - 1111 * 1774 * 651Dimension (HxWxD) in - 43.7 * 69.8 * 25.6Net Weight - 50 kg/ 110.2 lbMedia Basket - IncludedStand - Standard
Enhanced AAS II Contour Cutting System
The Jaguar V series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images. Functions include:
Media Take-up System
GCC develops the Jaguar V PPF machine equipped with the professional Media Take-up System for roll-to-roll cutting that makes paint protection film (PPF) cutting much more efficiently and cost lower than manual cutting.
Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Jaguar V series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.
New registration marks defined to detect material feeding direction. Jaguar V detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.
Jaguar V series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
Triple Port Connectivity
Jaguar V series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and Jaguar V. Ethernet connection enables multiple Jaguar V to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers a great flexibility for data transmission.
At up to 60 inches per second of cutting speed, Jaguar V series cutting throughput simply outperforms the competition.
Guaranteed 10m Tracking Ability
The exclusive grid drum and precisely engineered mechanism to provide superb tracking ability.
Innovative Tangential Mode
The tangential mode performs clean cuttings, diminutive letterings and intricate graphics which yield smooth corners and sleek edges on thick materials.
Media Support System
The media support system is fully adjustable. It supports media on standard cores and resolves media drifting and alignment problems to ensure better tracking.
User-Friendly Control Panel
The easy-to-use and multi-language control panel can remarkably simplify complex tasks. It provides various functional settings to meet users' needs.
Selective Pinch Roller Positioning
Each pinch roller can be operated respectively to selective position wherever is proper to optimize its utility.
Facilitate Efficient Workflow of Car Wrapping
The dedicated GCC Jaguar V (PPF) is the most cost-effective and high-performance vinyl cutter for streamlined vehicle wrap workflow. With the support of third-party cutting software containing the window tint and PPF pattern library, GCC Jaguar V (PPF) can accurately cut the vehicle patterns you require, making the wrapping process quicker and easier.
GCC One-Click Windows Driver
GCC cutting plotters include an One-click Windows driver that allows sign makers to edit images in CorelDRAW or Adobe Illustrator and output directly to GCC cutting plotters.
